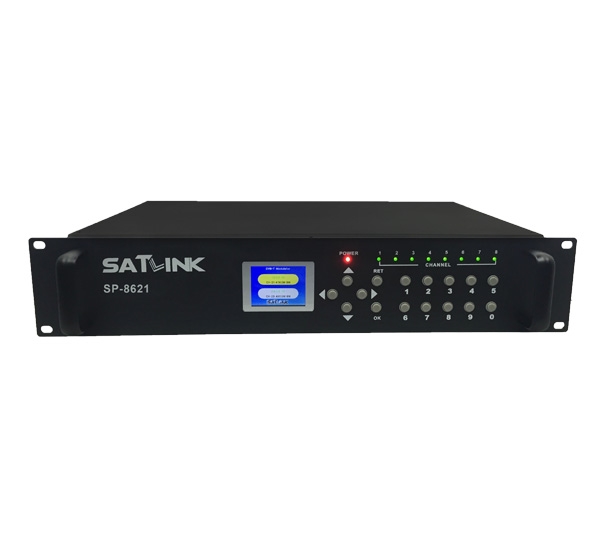

SP-8621 SP-8621 DVB-T modulator is developed to adapt terrestrial digital television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out. Order Manual

Key Features
Specifications
Functional Block Diagram

● IIntegration of H.264/AVC HD Encoder and DVB-T Modulator in a 19” 2U rack mount system
● Quad HD video inputs
● Adopt multiple audio formats
● 1 x DVB-T RF out with 2 frequency
● Bandwidth: 6/7/8MHz
● Frequency range: 100~860MHz

● Software attenuator
● Support Low Delay
● LCN (Logical Channel Number) support
● Excellent modulation quality

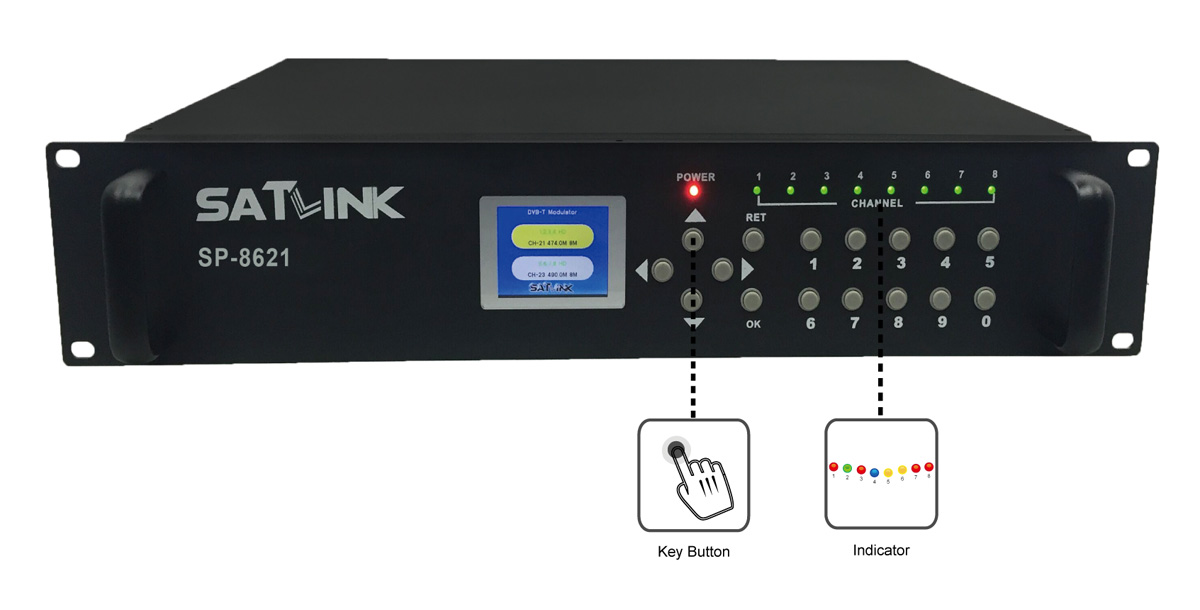

● User friendly configuration interfaces including 2.4-inch LCD with buttons
● Support modifying parameters by network
● Upgrade by PC

INPUT

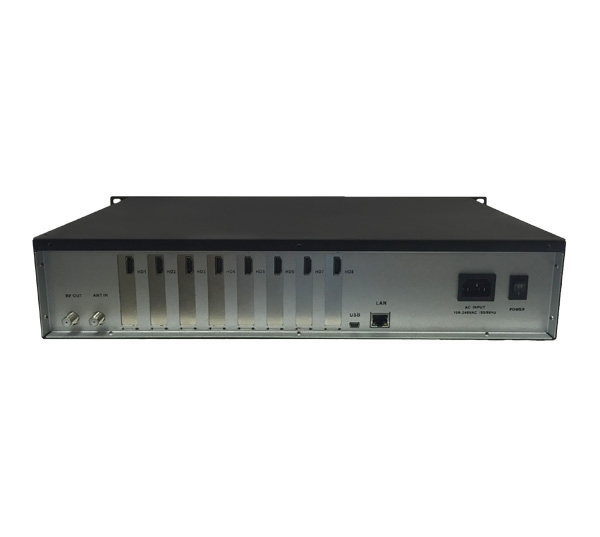

VIdeo Input	8 x HD Type A receptacle
Audio Input	8 x HD type A receptacle
ENCODING
Video Resolution	1080p @30p/25p
Video Compression	H.264/ AVC
Audio Compression	MPEG-1 Audio layer II (ISO/IEC 11172-3)
PID Setting	PMT/ Video/ Audio/ PCR
PSI	NID/ ONID/ P.D.S./ TS ID
LCN	At most 4 numbers
Service Name	At most 12 characters
GENERAL CHARACTERISTICS
Type 19	inch rack mount
Dimensions	480×340x90mm
Power Supply	AC 100~240 V
Power Consumption	40W
Operation Temperature	0 ~ +45°C
MODULATION
Transmission Mode	8K
Guard Interval	1/32
Code Rate	7/8
Constellation	64QAM
OUTPUT
Standard	DVB-T (ETSI EN 300 744)
Frequency Range	100-860 MHz
Output Level	70~100 dBuV
Bandwidth	6, 7, 8 MHz
Connector Type	‘F’ Female
CONTROL
Local operation	LCD panel, control buttons
