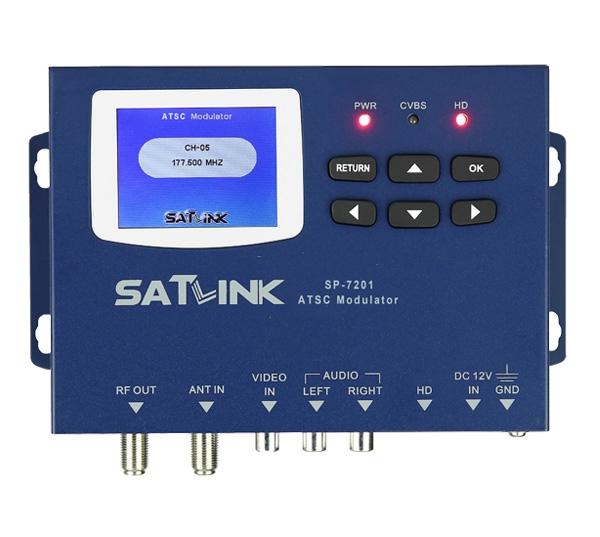

SP-7201 SP-7201 ATSC modulator is developed to adapt USA, Canada,Mexicoand other country’s terrestrial digital television. It's mainly applied inhome entertainment, surveillance control, hotel Digital Signage, shops etc.And it is integrating MPEG-2 encoding and modulating to convert audio/video signals into ATSC RF out. Order Manual

Key Features
Specifications
Functional Block Diagram

● Fully complying with ATSC standard
● Support 1 HD channel input
● Support MPEG-2 video encoding
● Support MPEG1 Layer 2 (HE-AAC (V2),LC -AAC optional) audio encoding
● Support HD input video format max to 1080p

● Output resolution 1080p@30
● Bandwidth of output signal: 6MHz;
● RF output range: 150~950MHz with 0.1MHz step
● Support 20dBuV attenuator by manual control
● Support 16x2 LCD displaying/ keyboard operating
● Upgrade software by PC

HDMI ENCODING SECTION
Video	Encoding	MPEG-2
	Interface	HDMI*1
	Resolution	Input	Output
		480/59.94/60p	480/60p
		480/59.94/60i	480/30p
		576/50i	576/25p
		720/50/59.94/60p	720/50/59.94/60p
		1080/50i	1080/25p
		1080/30/59.94/60i	1080/30p
		1080/30/59.94/60p	1080/30p
	Aspect Ratio	16:9,4:3
	Bit rate	1.000~18.000 Mbps
Audio	Encoding	MPEGI layer 2
	Sample rate	48KHz
	Bit rate	64,96,128,192,256,320kbps

Standard		ATSC A/53
Bandwidth		6M
Constellation		8VSB
MER		≥30dB
RF frequency		150~950MHz,0.1MHz step
RF output level(ATT)		80~100dBuV

Power supply		DC 12V
Dimensions		15011333mm
Weight		＜１kg
Temperature		0~45°C(operation,-20~80°C(storage)

If you are interested in these products, please leave the relevant staff will contact you quickly.
