● Fully complying with ISDB-T standard
● Support 1 HD channel input & 1 CVBS channel input
● Support H.264/AVC video encoding
● Support MPEG1 Layer 2 (HE-AAC (V2),LC -AAC optional) audio encoding
● Support HD input video format max to 1080p Output resolution 1080p@30
● Support adding AES scramble signal
● Bandwidth of output signal: 6MHz
● RF output range: 100~860MHz with 1KHz step
● RF output level: 69~100dBuV
● Support 2.4 inch LCD displaying/ keyboard operating
● Upgrade software by PC

HD/MI ENCODING SECTION
Video	Encoding	H.264MP*L  3.0/3.1/4.0

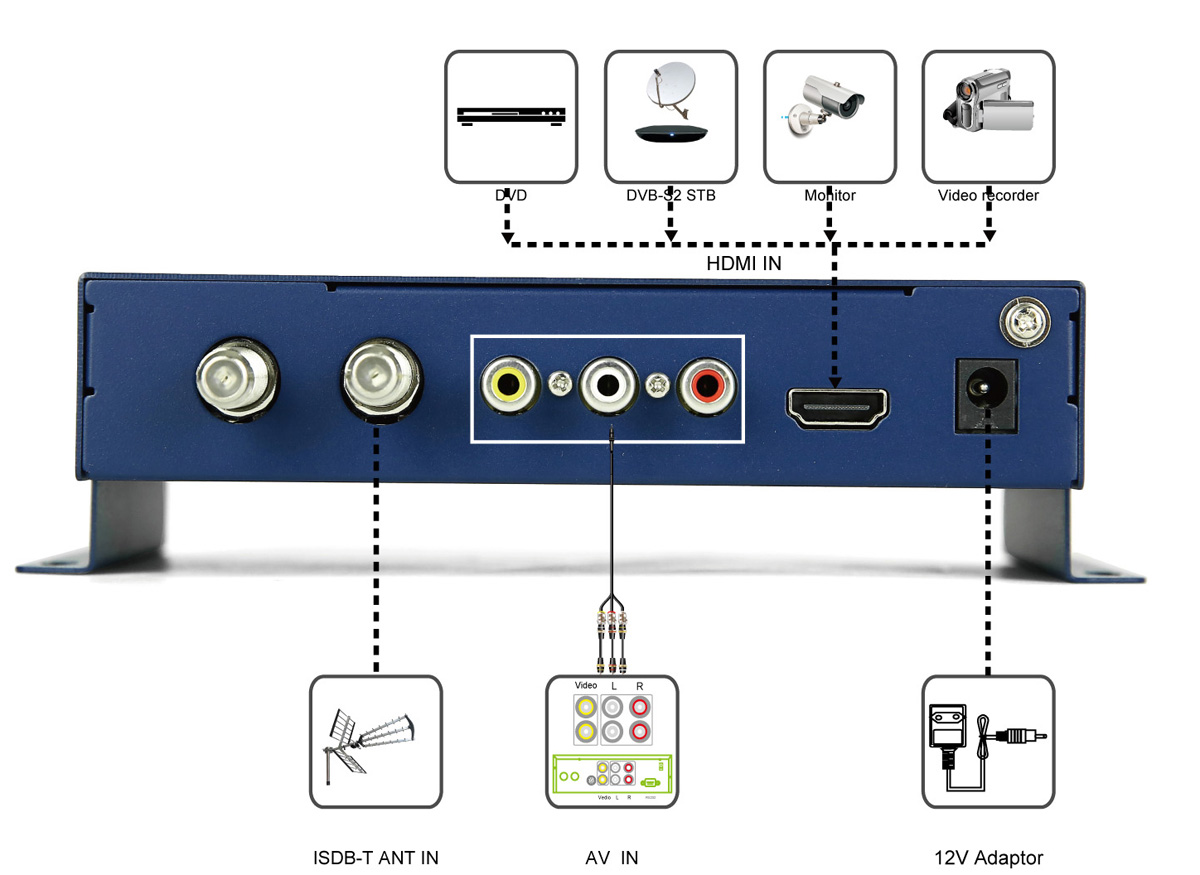

	Interface	HDMI* 1
	Resolution	Input	Output
		480/59.94/60p	480/60p
		480/59.94/60i	480/30p
		576/50i	576/25p
		720/50/59.94/60p	720/50/59.94/60p
		1080/50i	1080/25p
		1080/30/59.94/60i	1080/30p
		1080/30/59.94/60p	1080/30p
	Aspect Ratio	16:9,4:3
	Bit rate	1.000~20.000Mbps
Audio	Encoding	MPEGI layer 2
	Sample rate	48KHz
	Bit rate	128,192kbps

ISDB-T MODULATOR SECTION
Standard	ARIB STD-B31
Bandwidth	6M
Constellation	QPSK. 16QAM. 64QAM
Guard Interval	1/32,1/16,1/8,1/4
Transmission Mode	2K,8K
RF frequency	100~860MHZ, 1KHz step
RF output level	(69~100 dBμV), 1db step

GENERAL
Power supply	DC12V/1.5A
Dimensions	154*113*33(mm³)
Weight	＜1kg
Temperature	0~45°c( operation), -20~80°c( storage)
