| TRANSMISSION STANDARDS | |
| DVB-S2/S, MPEG-2, MPEG-4, H.264/H.265(8 Bit) | |
| SATELLITE INPUT/DEMODULATION | |
| Connector Type | F Type |
| Input Frequency | 950 to 2150 MHz |
| Signal Input Level | -65 to -25 dBm |
| Band Switch Control | 22KHz |
| LNB Supply | 13V/18V, IMax 400mA |
| Demodulation Type | QPSK, 8PSK |
| Symbol Rate | 2<Rs<45Mband (SCPC/MCPC) |
| LCD FEATURES | |
| LCD Type | TFT Transmissive |
| Number of Dots | 480(RGB) x272 |
| Active area (WxH) | 95.04x53.86 mm² |
| AV OUTPUT INTERFACE | |
| Connector Type | 3.5 mm jack |
| Video Output | CVBS |
| Audio Output | Stereo Audio L/R output |
| HDMI OUTPUT CONNECTER | |
| Format | HDMI 1.3a |
| AV INPUT INTERFACE | |
| Connector Type | 3.5 mm jack |
| Video Input | CVBS |
| Audio Input | Stereo Audio L/R input |
| AUDIO/VIDEO PROCESSING | |
| Video decompression | MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@L5 HD resolution, H.264 MP& HP@L4, HW JPEG decoding |
| Resolving rate | PAL-25 frame@720*576 ; NTSC-30 frame@720*480 |
| Signal compatibility | Support conversion for dierent video formats |
| Video Format | 4:3, 16:9, By Pan & Scan and Letter Box conversion |
| Audio Decompression | MPEG-1 Layer I/II, MPEG-2 Layer I/II |
| Audio Output Mode | Stereo, Mono, R/L |

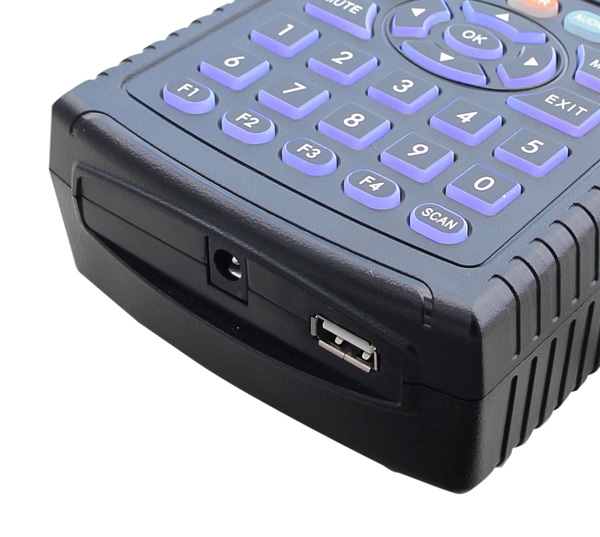

| DATA SERVICE PORT | |
| Connector | USB |
| Data Protocol | USB2.0 interface |
| File Management System | NTFS,FAT32,FAT16 |
| File Format | wma,mp3,mp4,avi,jpg,jpeg,bmp,img |
| POWER SUPPLY | |
| Li-Ion Battery | 7.4V/3000mAh |
| Adapter | OUTPUT :DC12V/1.5A, INTUPT :100~240VAC 50/60Hz |
| Power Consumption | Max. 10W |
| PHYSICAL CHARACERSTICS | |
| Size (W x D x H) | 12.5x20.5 x4.5(cm³) |
| Net Weight | 0.66kg |
