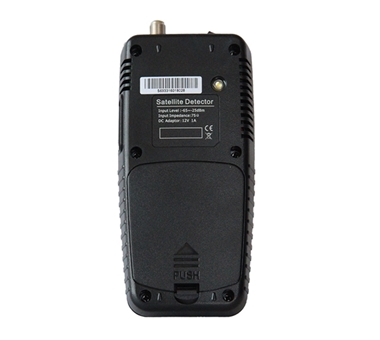

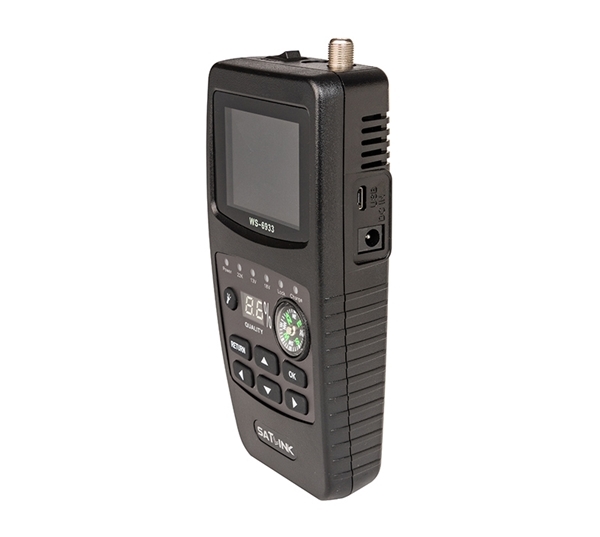

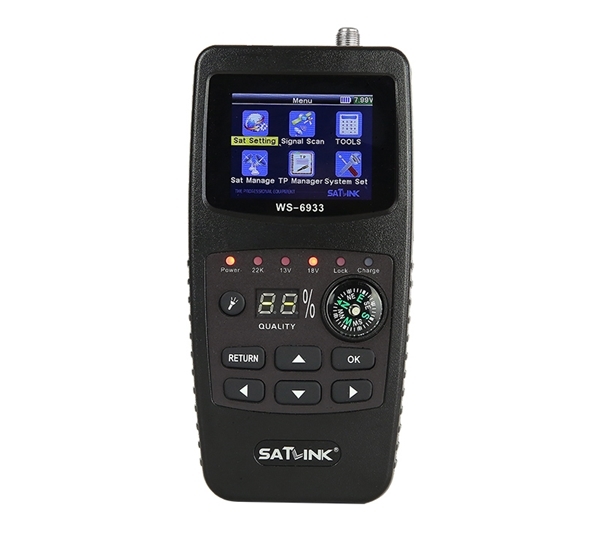

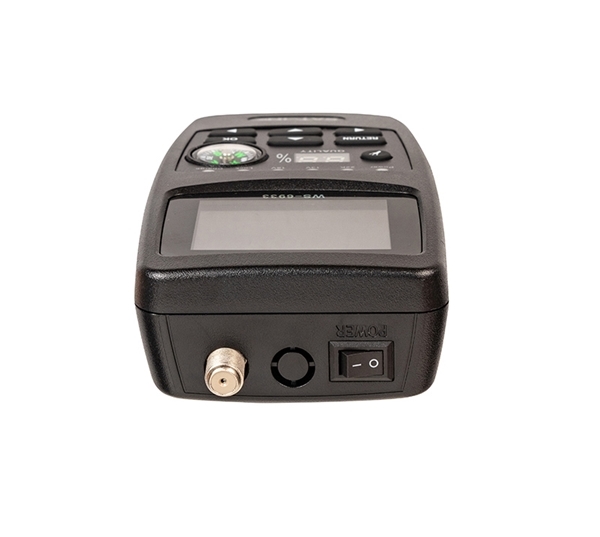

WS-6933 WS-6933 is a fully DVB-S/S2 compliant handheld satellite finder.With it’s compact size,light weight,intuitive user’s interface,long battery operational hours and rich feature ser,the finder provides all functions needed for installation and verification of digital TV service to residential homes or multi-dwelling units. Order Manual

Key Features
Specifications
Functional Block Diagram

● Interface
- TFT LCD 240X320 RGB
- 7.4V/800mAh Li-Ion Rechargeable Battery
- 12V /1A AC/DC Adapter
- Buzzer
- LED Flashlight
- USB 2.0 Type A
● Signal Strength, BER, S/N, Power Measurment
● Signal Lock with Panel LED and Sound Indicators
● DiSEqC 1.0/1.1 and 22 kHz Tone
● Mechanical Compass(external, optional)
● LNB Short Protection
● Software Upgrade and File Transfer via PC

Transmission
DVB-S, DVB-S2
Satellite Input/Demodulation
Connector	F Type
Input Frequency Range	950 to 2150 MHz
Signal Input Level	-65 to -26 dBm
Band Switch Control	22 kHz
LNB Supply	13V/18V.IMax 300mA
Demodulation Type	QPSK , 8PSK, 16APSK,32APSK
Symbol rate	2<Rs <45 Mband (SCPC/MCPC)
Displsy
LCD	TFT Positive
Resolution	240×320(RGB)
Active Area	36.72(W)×48.9(H)mm²
Data Service
Connector	USB
Data protocol	USB to RS-232
Power Supply
Li-lon Battery	7.4V/800mAh
Adapter	Output: 12VDC/1A Input: 100 to 240VAC, 50/60Hz
Power Consumption	Maximum 5W
Physical
Dimension	80×160X40mm
Weight	0.25kg
