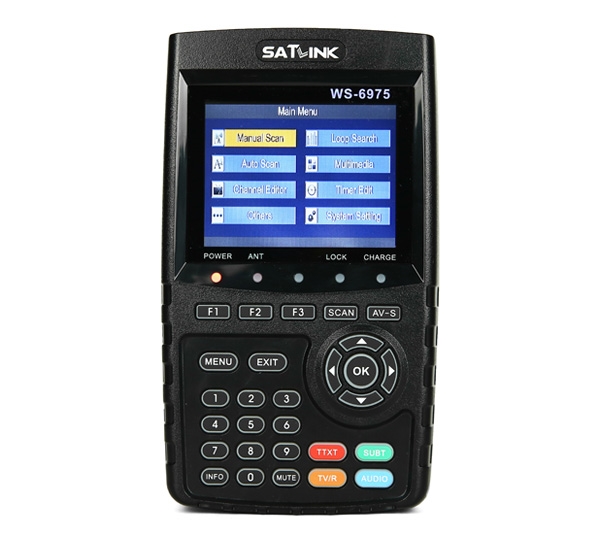

WS-6975 This product supports DVB-T/T2 signal standard. It is very small and easy to carry, and the capability of receiver signal is very strong。You don't have to carry extra power, monitor; It's very convenient to use. OrderManual
● 3.5 Inch High Definition TFT LCD Screen
● Fully DVB-T/DVB-T2
● Support the newest encoding format
● Digital meter for signal strength and quality
● Supports scan of Auto,Manual
● Sound and Light Alarm for Locking Signal
● Speaker Integrated
● Support both AV out and AV in
● Support HD out
● ANT short protect
● 7.4V/3000mAh Li-Ion Battery Included
● DC 12V output for monitor
● Software upgrade via USB port
● Easy to carry

TRANSMISSION STANDARDS
DVB-T/T2, MPEG-2,MPEG-4,H.265(8 Bit)
DVB-T/T2 INPUT/DEMODULATION
Connector Type Female Type
Input Frequency 48 to 862 MHz
Signal Input Level -79.5dBm (MAX)
ANT Supply 12V, 18V/24V Imax 100mA
Demodulation Type QPSK,16QAM.64QAM,256QAM
LCD FEATURES
LCD Type TFT Transmissive
Number of Dots 480(RGB) x272
Active area (WxH) 70.02x52.58 mm²
AV output/AV input interface
Connector Type 3.5 mm jack
Video Output CVBS
Audio Output Stereo Audio L/R output
HDMI output connecter
Format HDMI 1.3a
AUDIO/VIDEO PROCESSING
Video decompression MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.265 MP&HP@L4,HW JPEG decoding
Resolving rate PAL-25 frame@720*576,NTSC-30 frame@720*480
Signal compatibility Support conversion for different video formats
Video Format 4:3,16:9,By Pan & Scan and Letter Box conversion
Audio Decompression
MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode Stereo, Mono,R/L
DATA SERVICE PORT
Connector USB
Data Protocol USB2.0 interface
File Management System NTFS,FAT32,FAT16
File Format wma,mp3,mp4,avi,jpg,jpeg,bmp,img
POWER SUPPLY
Li‰Ion Battery 7.4V/3000mAh
Adapter OUTPUT :DC12V/1.5A, INTUPT :100~240VAC 50/60Hz(Will be subject to actual configuration)
Power Consumption Max. 10W
PHYSICAL CHARACERSTICS
Size (W x D x H) 10.1x17.7 x4.7(cm³)
Net Weight 0.46kg
