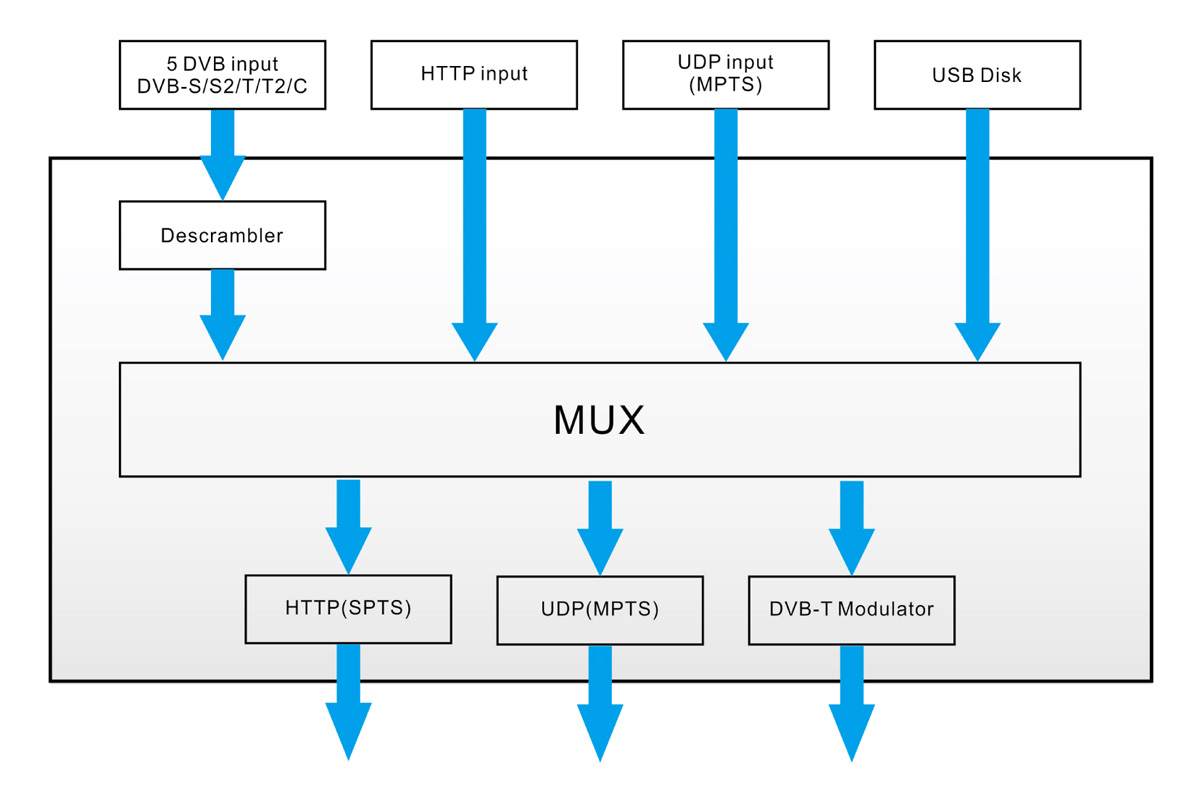

● 5 group tuner input, support DVB-S/S2, DVB-T/T2, DVB-C and ISDB-T

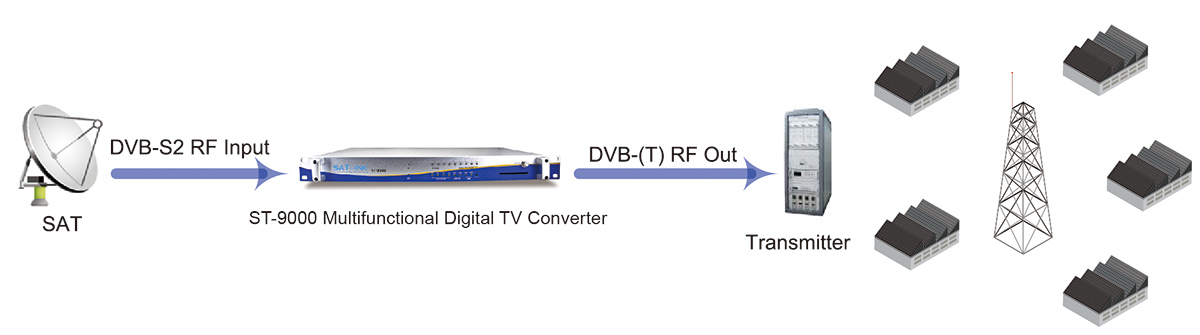

● 4 group transmission frequency output, support DVB-T and ISDB-T
● Support IPTV input (HTTP/UDP/Multicast)
● Support IPTV output (HTTP/UDP/Multicast)
● Support one 100Mbps Etherner
● Support one 1Gbps Ethernet
● Support one USB3.0 interface
● Support one USB2.0 interface
● Support BISS and Smart Card
● Support remote control
● Support OTA upgrade
● Support HDMI output interface for TV setting
| Hardware | |
| Input | RF X5 |
| Output | RF X1 (4 Channel ) |
| Enthernet | RJ45 X2 |
| Power | AC100~220V |
| USB | USB 2.0 X1 |
| CA | CA X1 |
| RF INPUT | |
| Standar | |
| DVB-S | ETSI EN 300-421 V1.1.2 |
| DVB-S2 | ETSI EN 302-307 V1.2.1 |
| DVB-T2/T2-Lite | ETSI EN 302-755 V1.3.1 |
| DVB-T | ETSI EN 300-744 V1.6.1 |
| DVB-C | ETSI EN 300-429 V1.2.1 |
| PART1: DVB-S/S2/S2X | |
| Symbol rate | 1M ~45M Ksym/s |
| RollOff | 0.35/0.25/0.2/0.15/0.1/0.05 |
| Demodulation types | QPSK, 8PSK, 8APSK-L,16APSK(-L), 32APSK(-L) |
| RF OUT | |
| Standar | |
| DVB-C | ETSI EN 300-429 v1.2.1 |
| DVB-T | ETSI EN 300-744 V1.6.1 |
| PART1: DVB-T | |
| BandWidth | 6MHz, 7MHz, 8MHz |
| FFT Size | 2K, 8K |
| Constellation | 64QAM |
| PART2: DVB-C | |
| Symbol rate | 1.7 ~ 7Msym/s |
| Constellation | 64, 128 and 256QAM |
| Satellite Signal | |
| Connector | F-Type |
| Input Frequency | 950~2150 |
| Input Level | -80~-10dBm |
| LNB Power supply | 14V / 18V / OFF, Imax 350mA |
| Port Switch | DisEqc 1.0, DisEqc 1.1, |
| Enthernet | |
| Connector | RJ45 |
| Standar | IEEE 802.3 |
| Type | 100M/1G |
| Funciton | IP ,NMS |
| Upgrade/Editor | |
| Connector | RJ45 |
| Funciton |
system config RF Input setting RF Output setting IP |
| Physical Characerstics | |
| Size(W*D*H) | 240*200*50 |
