WS-8901U ST-8901U DVB-T modulator is developed to adapt terrestrial digital television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out. Order Manual

Key Features
Specifications

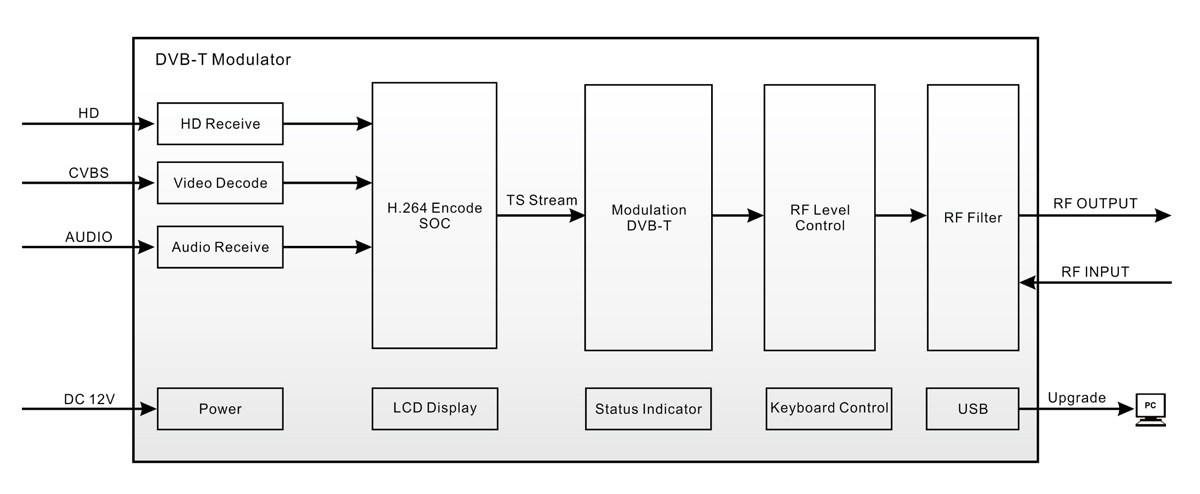

Functional Block Diagram

● High level of integration, high-performance, full-featured, integrated design
● single input modulator convert to one DVB-T channel
● Standard COFDM modulation and H.264 encoding
● Multiple video format compatibility including 576i(PAL) / 480i(NTSC)
● Bandwidth: 6/7/8MHz
● Frequency range: 100~860MHz
● Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV
● 1.7-inch color LCD display
● Support AES encryption
● Carriers 2K and 8K
● User friendly setup and control
● Upgrade by PC

Modulator
Standard	DVB-T
Constellation	QPSK / 16QAM / 64QAM
Bandwidth	6 / 7 / 8 MHz
Carriers	2K / 8K
Guard Interval	1/4, 1/8, 1/16, 1/32
Code Rate	1/2, 2/3, 3/4, 5/6, 7/8
Frequency Range	100 ~ 860 MHz
Output Level	70 ~ 100 dBuV
Output Impedance	75Ω
VIDEO
Input Format	CVBS/HDMI
Encoding Format	H.264
Video Resolution	576i PAL / 480i NTSC/1080p
Connector	RCA/HDMI 1.3
AUDIO
Input Format	Stereo L/R channel
Encoding Format	MPEG-1 Audio Layer II
Connector	RCA
GENERAL
Power Source	AC 100~240V
Operating Temperature	0 ~ +45°C
Dimensions	480mm(L)× 2 0 4mm( W ) ×45mm(H)
Weight	2.1kg
