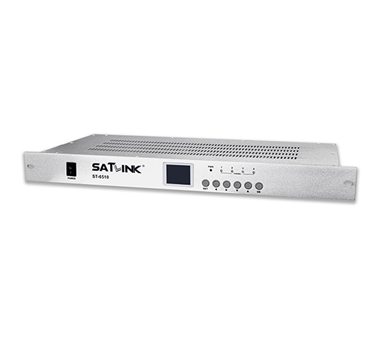

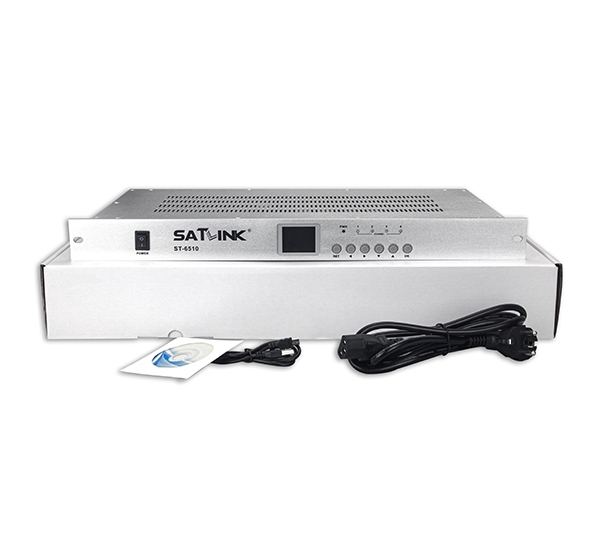

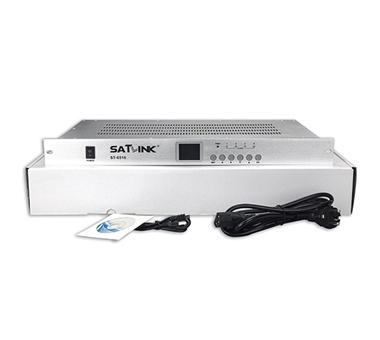

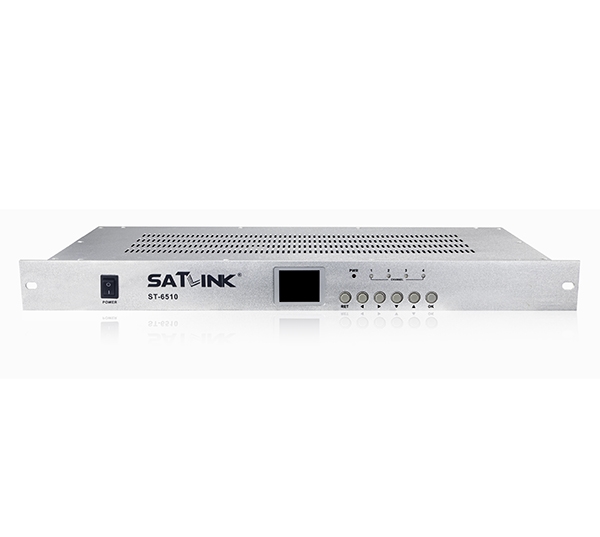

ST-6510 ST-6510 DVB-T modulator is developed to adapt terrestrial digital television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out. OrderManual
● Integration of H.264/AVC HD Encoder and DVB-T Modulator in a 19” 1U rack mount system
● Quad HD video inputs
● Adopt multiple audio formats
● 4 HD input and 1 DVB-T RF output
● Bandwidth: 6/7/8MHz
● Frequency range: 100~860MHz
● Electronic attenuator
● LCN (Logical Channel Number) support
● Excellent modulation quality
● User friendly configuration interfaces including 1.7-inch LCD with buttons
● Support modifying parameters by network
● Upgrade by PC


INPUT
VIdeo Input Encoding 4 x HD Type A receptacle
Audio Input 4 x HD type A receptacle
ENCODING
Video Resolution 1080p @30p/25p
Video Compression H.264/ AVC
Audio Compression MPEG-1 Audio layer II (ISO/IEC 11172-3)
PID Setting PMT/ Video/ Audio/ PCR
PSI NID/ ONID/ P.D.S./ TS ID
LCN At most 4 numbers
Service Name At most 12 characters
GENERAL CHARACTERISTICS
Type 19 inch rack mount
Dimensions 480×180×44(mm³)
Power Supply 50/60Hz
Power Consumption 20W(MAX)
Operation Temperature 0 ~ +45°C
MODULATION
Transmission Mode 2K/8K
Guard Interval 1/4,1/8,1/16,1/32
Code Rate 1/2 , 2/3 , 3/4 , 5/6 , 7/8
Constellation QPSK,16QAM,64QAM
OUTPUT
Standard DVB-T (ETSI EN 300 744)
Frequency Range 100-860 MHz
Output Level 70~100 dBuV
Bandwidth 6, 7, 8 MHz
Connector Type ‘F’ Female
CONTROL
Local operation LCD panel, control buttons
