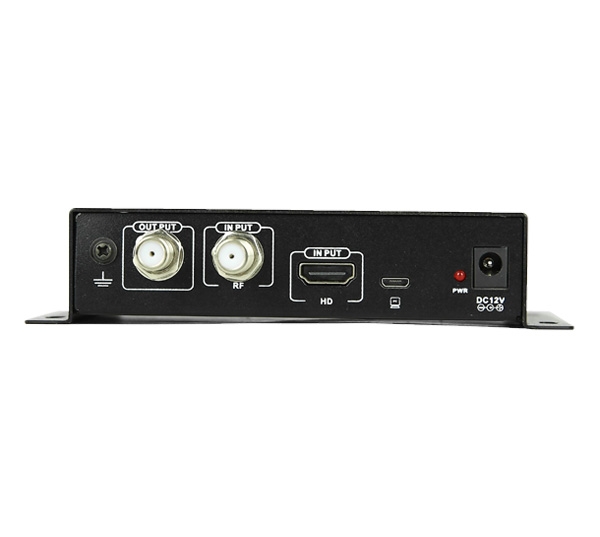

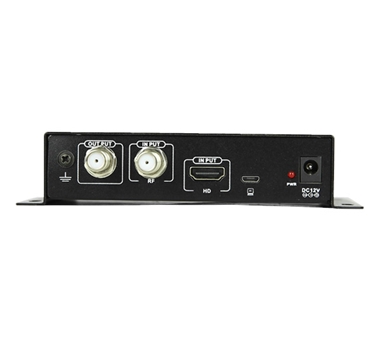

ST-6503 ST-6503 modulator is developed to adapt terrestrial digital television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out. Order Manual

Key Features
Specifications

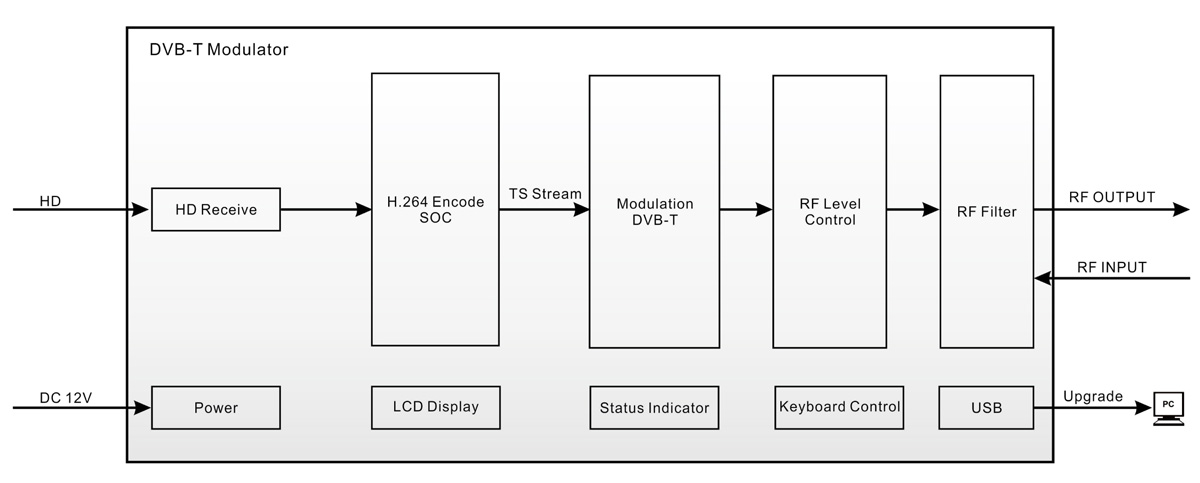

Functional Block Diagram

● High level of integration, high-performance,Full-featured,integrated design
● Single input modulator that converts HD source to a DVB-T channel
● Standard COFDM modulation and H.264 encoding
● Multiple video format compatibility including 720p / 1080p
● Bandwidth: 6/7/8MHz
● Frequency range: 100~860MHz

● Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV

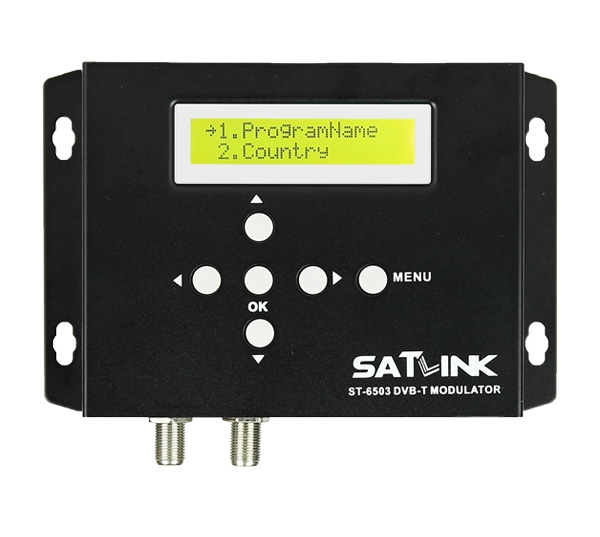

● 16*2 LCD lattice screen
● Small size and light weight
● Carriers 2K and 8K
● User friendly setup and control
● Compact and wall mountable

Modulator
Standard	DVB-T
Constellation	QPSK,16QAM,64QAM
Bandwidth	6 / 7 / 8 MHz
Carriers	2K / 8K
Guard Interval	1/4,1/8,1/16,1/32
Code Rate	1/2 , 2/3 , 3/4 , 5/6 , 7/8
Frequency Range	100 ~ 860 MHz
Output Level	70 ~ 100 dBuV
Output Impedance	75Ω
HD
Compression	H.264-bitrate 5-15 Mb/s
Video Resolution	19201080_60P,19201080_50P; 19201080_60i, 19201080_50i; 1280720_60P,1280720_50P
Connector	HD
General
Power Source	DC 12V/1.5A
Operating Temperature	0 ~ +45°C
Dimensions	125mm( L ) ×100mm(W) × 28mm(H)
Weight	0.5Kg

If you are interested in these products, please leave the relevant staff will contact you quickly.
