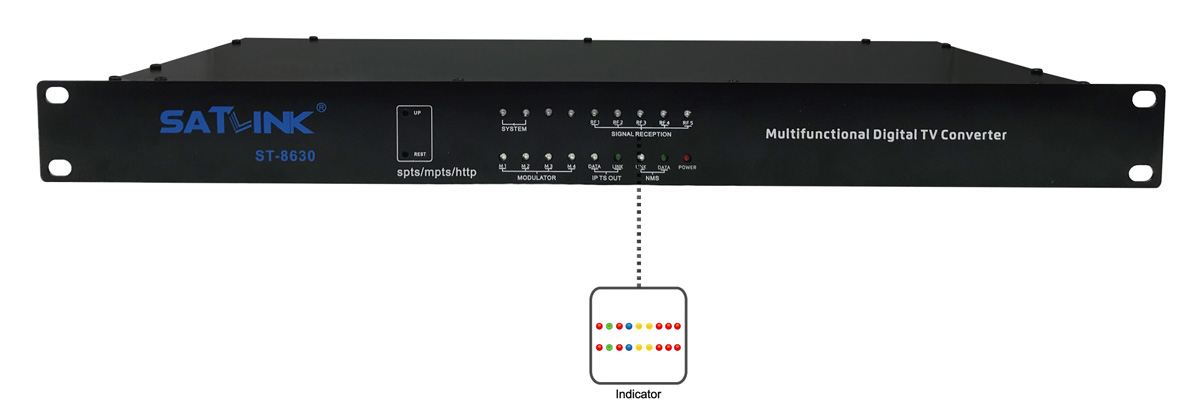

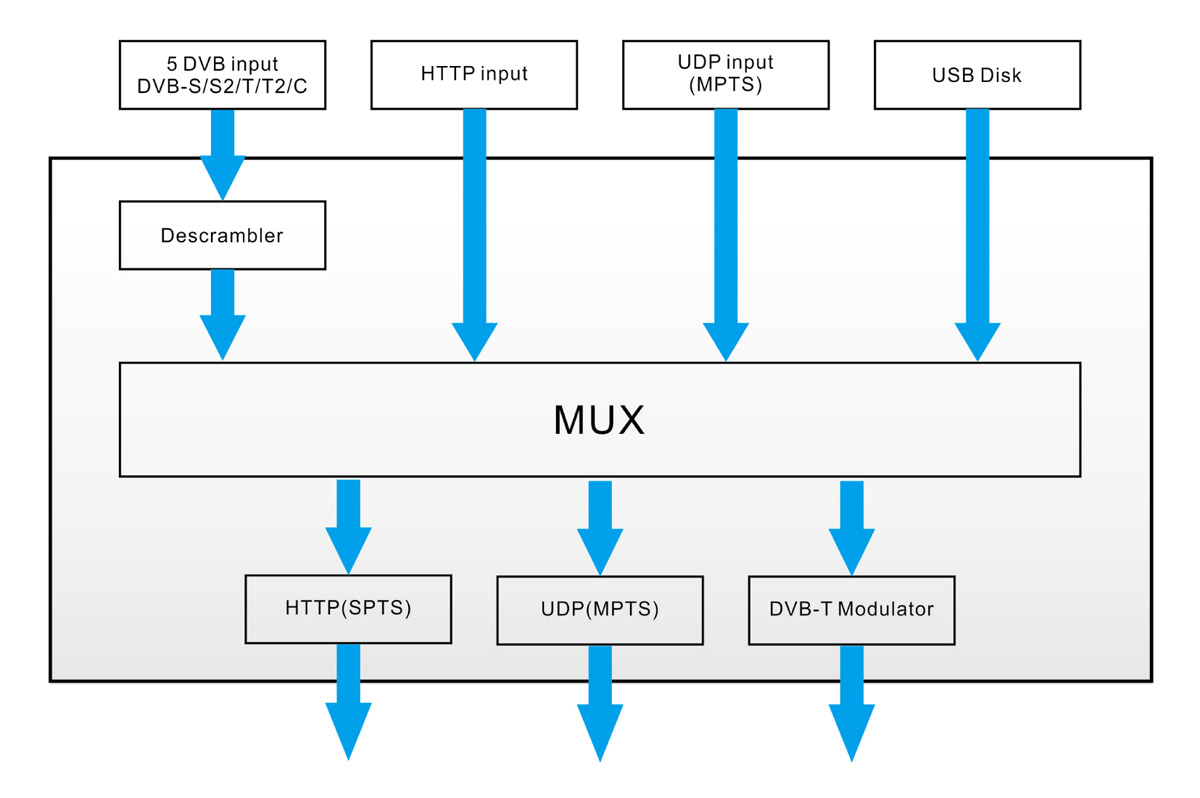

ST-8630 This product is a digital TV program gateway device. It can collect encrypted/free satellite/cable/terrestrial channels, convert them into HTTP IPTV output, UDP multicast output, or directly into DVB-T/ISDB-T output. The output signal can be watched by IPTV/DVB-T/ISDB-T STB, or ISDB-T/DVB-T TV directly. Order
● Support 5 channels of signal input, each channel can be DVB-S/S2, DVB-T, DVB-C,ISDB-T mode
● Support output 4 channels DVB-T/ISDB-T signal, the frequency can be set freely
● Support IPTV input, unicast HTTP protocol, UDP multicast
● Support external USB and video files play
● Support HTTP protocol IPTV unicast output, can be played directly by network set-top box
● Support HDMI output interface for TV setting

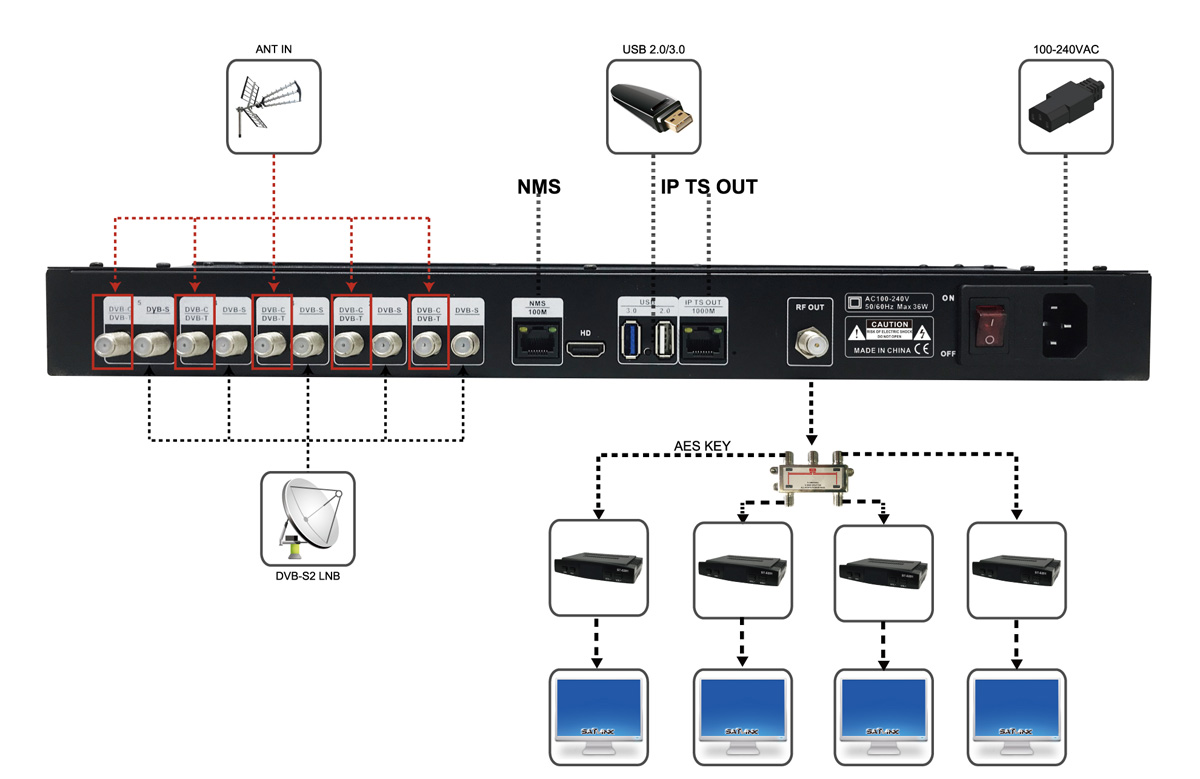

Input
5 DVB-S/S2 FTA TUNER INPUT PORTS
5 DVB-C/T/T2 FTA TUNER INPUT PORTS
48 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M
Unicast/Multicast
Tuner Section
DVB-S Input Frequency 950-2150MHz
Symbol rate 1-55Msps
Signal Strength -65~-25dBm
FEC Demodulation 1/2,2/3,3/4,5/6,7/8,QPSK
DVB-S2 Input Frequency 950-2150MHz
Symbol rate QPSK 1~55 Mbauds
8PSK 1~45Mbauds
Code rate QPSK 1/2,3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
Constellation QPSK, 8PSK
DVB-T/T2 Input Frequency VHF:170MHz~227MHz
UHF:470MHz~862MHz
Babdwidth 6M,7M,8M
QAM Modes 4, 16, 64, 256(with or without rotation)
FFT Sizes 1K, 2K, 4, 8K, 16K, 32K
DVB-C Frequency Range 54~862MHz
QAM Modes 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol Rate 2000~7000
ISDB-T Frequency Range 52.5~862MHz
  QAM Modes DQPSK,QPSK,16QAM,64QAM
  Bandwidth 6M
  Code rate 1/2,2/3,3/4,5/6,7/8
Tuner Section
Mode 1, Mode E(Up to 850 Mbps) (descramble individual program)
Tuner Section
Maximum PID Remapping 256 per input channel
Function PID Remapping
Accurate PCR adjusting
Generate PSI/SI table automatically
Modulation
DVB-T Standard EN300744
FFT mode 2K, 8K
Bandwidth 6M, 7M, 8M
Constellation QPSK,16QAM, 64QAM
Guard Interval 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
MER 32 dB
RF frequency 100~862MHz, 1KHz step
RF out 4*RF COFDM DVB-T out (4 carriers conbined output)
RF output level 100dbμV,±1 dB 75ohms
Attenuator -18 to 6 dB in 1 dB steps
ISDB-T Standard ARIB STD-B31
Bandwidth 6M
Constellation QPSK, 16QAM, 64QAM
Guard Interval 1/32, 1/16, 1/8, 1/4
Transmission Mode 2K, 8K
MER 32dB
RF frequency 54~862MHz, 1KHz step
RF output level (69~100 dBμV), 1db step
System
Remote management Web NMS
Stream Out 4*MPTS over UDP and RTP out (RJ45, 1000M/100M Unicast/Multicast)
Language English and Chinese
Software Upgrading Web and USB
General
Dimension (W*D*H) 210mm x 430mm x 43mm
Weight 3 kg
Temperature 0~45 °C (Operation) ; -20~80°C (Storage)
Power AC 100V - 240V ±10%, 50/60 Hz
Consumption 36W
If you are interested in these products, please leave the relevant staff will contact you quickly.
